VXLAN与flat网络共存测试模型

2015年05月15日 18568点热度 2人点赞 0条评论

受限于实体网络以及主机网卡，利用em2接口作为vm的流量接口，该接口所在网络以vxlan 网络运行，同时compute主机的另一个接口em1配置为支持openstack flat网络，这样可以在openstack内部起一个flat类型网络，该网络还可以顺便作为L3 agent的external 网络。

flat 网络是openstack中非vlan方式的可以与外部物理网络直接通的一种provider网络。

compute节点添加一个br-ex接口，将地址分配到该br-ex接口上

root@compute:/var/log/upstart# cat /etc/network/interfaces
# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).

# The loopback network interface
auto lo
iface lo inet loopback

# The primary network interface
auto em1
iface em1 inet manual
up ifconfig $IFACE 0.0.0.0 up
up ip link set $IFACE promisc on
down ip link set $IFACE promisc off
down ifconfig $IFACE down



# Used for openstack flat and hypervisor mgmt
auto br-ex
iface br-ex inet static
        address 9.9.9.6
        netmask 255.255.255.0
        network 9.9.9.0
        broadcast 9.9.9.255
        gateway 9.9.9.253
        # dns-* options are implemented by the resolvconf package, if installed
        dns-nameservers 8.8.8.8


auto em2
iface em2 inet static
        address 10.1.1.6
        netmask 255.255.255.0
        network 10.1.1.0
        broadcast 10.1.1.255

root@compute:/var/log/upstart# cat /etc/network/interfaces

# This file describes the network interfaces available on your system

# and how to activate them. For more information, see interfaces(5).

# The loopback network interface

auto lo

iface lo inet loopback

# The primary network interface

auto em1

iface em1 inet manual

up ifconfig $IFACE 0.0.0.0 up

up ip link set $IFACE promisc on

down ip link set $IFACE promisc off

down ifconfig $IFACE down

# Used for openstack flat and hypervisor mgmt

auto br-ex

iface br-ex inet static

address 9.9.9.6

netmask 255.255.255.0

network 9.9.9.0

broadcast 9.9.9.255

gateway 9.9.9.253

# dns-* options are implemented by the resolvconf package, if installed

dns-nameservers 8.8.8.8

auto em2

iface em2 inet static

address 10.1.1.6

netmask 255.255.255.0

network 10.1.1.0

broadcast 10.1.1.255

然后添加 br-ex 桥以及将em1接口加入br-ex桥

ovs-vsctl add-br br-ex

ovs-vsctl add-port br-ex em1

reboot 机器

network节点以及计算节点ml2文件配置如下：

root@compute:/var/log/upstart# egrep -v "^$|^#" /etc/neutron/plugins/ml2/ml2_conf.ini
[ml2]
type_drivers = flat,vxlan,vlan,gre
tenant_network_types = vxlan,vlan
mechanism_drivers = openvswitch
[ml2_type_flat]
flat_networks = phyflat9
[ml2_type_vlan]
[ml2_type_gre]
tunnel_id_ranges = 1:1000
[ml2_type_vxlan]
vni_ranges = 65537:69999
[ovs]
local_ip = 10.1.1.6
tunnel_type = vxlan
tunnel_bridge = br-tun
integration_bridge = br-int
tunnel_id_ranges = 65537:69999
tenant_network_type = vxlan
enable_tunneling = true
network_vlan_ranges = phyflat9
bridge_mappings = phyflat9:br-ex
[agent]
root_helper = sudo neutron-rootwrap /etc/neutron/rootwrap.conf
tunnel_types = vxlan
vxlan_udp_port = 4789
l2_population = False
[securitygroup]
enable_security_group = True
firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver

root@compute:/var/log/upstart# egrep -v "^$|^#" /etc/neutron/plugins/ml2/ml2_conf.ini

[ml2]

type_drivers = flat,vxlan,vlan,gre

tenant_network_types = vxlan,vlan

mechanism_drivers = openvswitch

[ml2_type_flat]

flat_networks = phyflat9

[ml2_type_vlan]

[ml2_type_gre]

tunnel_id_ranges = 1:1000

[ml2_type_vxlan]

vni_ranges = 65537:69999

[ovs]

local_ip = 10.1.1.6

tunnel_type = vxlan

tunnel_bridge = br-tun

integration_bridge = br-int

tunnel_id_ranges = 65537:69999

tenant_network_type = vxlan

enable_tunneling = true

network_vlan_ranges = phyflat9

bridge_mappings = phyflat9:br-ex

[agent]

root_helper = sudo neutron-rootwrap /etc/neutron/rootwrap.conf

tunnel_types = vxlan

vxlan_udp_port = 4789

l2_population = False

[securitygroup]

enable_security_group = True

firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver

配置完毕后，可以创建一个flat 网络

keystone tenant-list

neutron net-create --tenant-id 496355a769d94241afbbdc76adbe1fb5 sharedflat9 --shared --router:external=True --provider:network_type flat --provider:physical_network phyflat9

neutron net-create --tenant-id 496355a769d94241afbbdc76adbe1fb5 sharedflat9 --shared --provider:network_type flat --provider:physical_network phyflat9

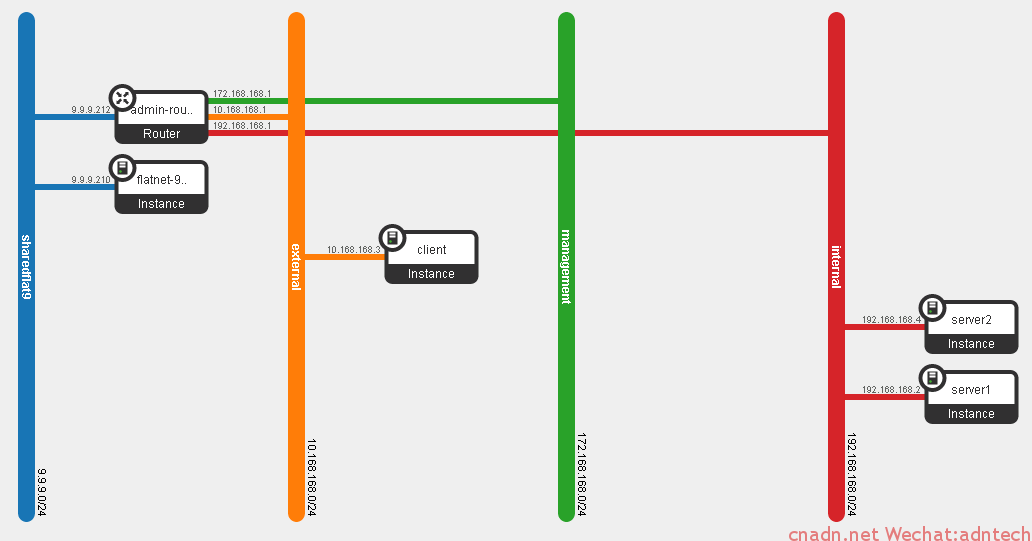

可以将该网络分配给L3 agent router作为external网络使用，这样L3 agent就可以通过该网络连接到internet处的F5设备。
