F5BIGIP配置socks服务

2017年08月03日 4722点热度 1人点赞 0条评论

F5 bigip自11.5.0版本后增加了socks profile的支持,即可以利用LTM提供socks4,4a以及socks5的服务。socks位于OSI模型的会话层上,可以透明的为TCP或UDP提供中转代理服务。

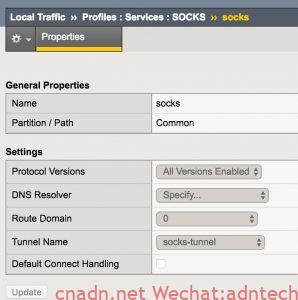

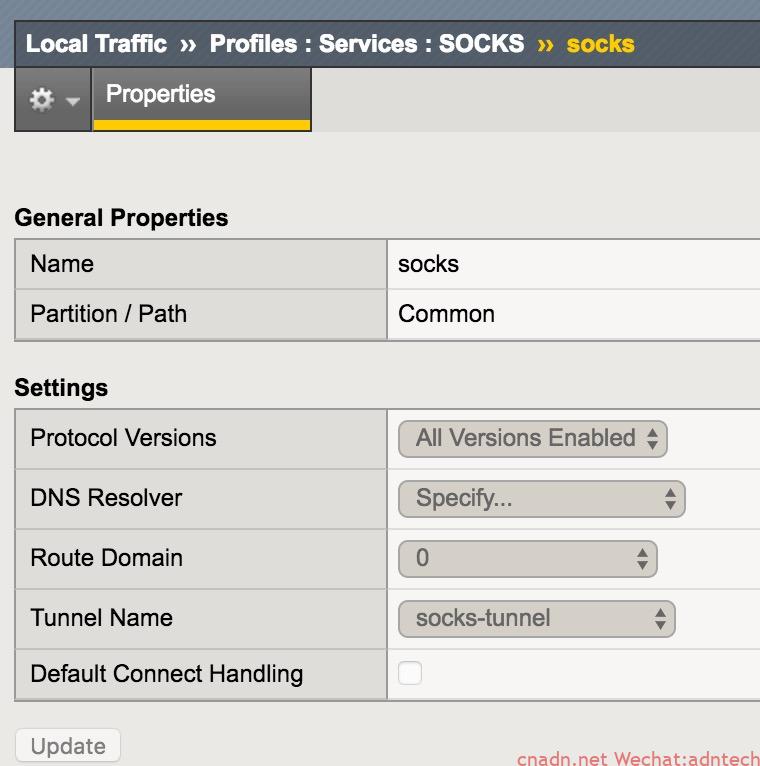

[title]socks profile配置项含义[/title]

protocol versions:选择需要支持的协议版本,可以为4,4a,5,默认则全部支持

DNS resolver:一个需要提前在网络部分配置好的resolver(只需配置resolver,无需配置系统级的DNS IP),以提供4a,5版本对访问目标地址为域名时的代理解析支持。即address type=domain,例如:

1
2
3
4
5
6
7
Socks Protocol
    Version: 5
    Command: Connect (1)
    Reserved: 0
    Address Type: Domain Name (3)
    Remote name: www.myf5.net
    Port: 443

抓包范例:立即下载

Route domain:指LTM代理发起新连接时,新连接所走网络应该处于的route domain。

Tunnel name:  指LTM发起的代理新连接处于哪个tunnel里,所以如果需要额外VS来处理LTM发起的代理新连接,则这个额外的VS应该监听在这里指定的tunnel上

Default Connect handling: 指明发起的代理新连接是否需要额外的VS来处理,勾选表示无需额外VS,不勾选表示需要额外VS。 注意:即便勾选时,如果相应tunnel有可以处理代理连接的额外VS,则这些额外VS还是会接管这些流量(即一旦tunnel有额外vs能处理这些代理连接,则是否勾选都会有一样的行为)。
利用将代理连接交给额外的VS处理,可以实现对代理连接的进一步控制和处理,例如实现代理连接走指定线路出去等。

另外,对于配置socks profile的VS,其中的目的地址和目的端口转换选项必须保持勾选状态。

[title]不同配置组合下的行为[/title]

enable Default Connect Handling + tunnel内无可转发流量vs + socks VS无snat = 无法代理访问立即下载

enable Default Connect Handling + tunnel内无可转发流量vs + socks VS有snat = 可以代理访问,访问源地址是socks vs的SNAT地址. 此时route-domain设置无效。立即下载

enable Default Connect Handling + tunnel内有可转发流量vs + socks VS无snat = 可以代理访问,访问源地址去往可转发流量vs的时候使用原始客户端地址,经过转发vs后按转发vs规则处理立即下载

enable Default Connect Handling + tunnel内有可转发流量vs + socks VS有snat = 可以代理访问,访问源地址去往可转发流量vs的时候使用SNAT后的地址,经过转发vs后按转发vs规则处理立即下载

disable Default Connect Handling + tunnel内无可转发流量vs + socks VS有snat = 无法代理访问
disable Default Connect Handling + tunnel内无可转发流量vs + socks VS无snat = 无法代理访问
disable Default Connect Handling + tunnel内有可转发流量vs + socks VS无snat = 可以代理访问,访问源地址去往可转发流量vs的时候使用原始客户端地址,经过转发vs后按转发vs规则处理
disable Default Connect Handling + tunnel内有可转发流量vs + socks VS有snat = 可以代理访问,访问源地址去往可转发流量vs的时候使用原始客户端地址,经过转发vs后按转发vs规则处理

[title]socks irule[/title]

目前支持三个socks命令:

SOCKS::allowed 返回控制状态或设置控制是否容许使用socks

SOCKS::destination 返回或设置代理连接的目标域名/IP/port,例如:

1
2
3
4
5
6
7
8
9
10
when SOCKS_REQUEST {
log local0. "[SOCKS::destination host]"
}

Aug  3 15:46:30 ltm3900 info tmm[10394]: Rule /Common/socks_irule <SOCKS_REQUEST>: www.myf5.net
Aug  3 15:46:30 ltm3900 info tmm3[10394]: Rule /Common/socks_irule <SOCKS_REQUEST>: s22.cnzz.com
Aug  3 15:46:31 ltm3900 info tmm[10394]: Rule /Common/socks_irule <SOCKS_REQUEST>: z1.cnzz.com
Aug  3 15:46:31 ltm3900 info tmm1[10394]: Rule /Common/socks_irule <SOCKS_REQUEST>: c.cnzz.com
Aug  3 15:46:31 ltm3900 info tmm2[10394]: Rule /Common/socks_irule <SOCKS_REQUEST>: z1.cnzz.com
Aug  3 15:46:31 ltm3900 info tmm3[10394]: Rule /Common/socks_irule <SOCKS_REQUEST>: cnzz.mmstat.co

SOCKS::version 返回连接所用的版本

一个事件:

SOCKS_REQUEST 事件在socks连接发起到验证前被触发

[title]udp associate穿透[/title]

目前还不支持UDP的穿透(ID591610),在特定环境下,可以使用irule来模拟解决(需使用V12.1.2HF1以上版本.ID641360)

配置一个前端vs(不关联socks profile),关联以下irule。 然后该vs通过virtual 命令引导vs处理后的流量到真实的socks vs vs_proxy_real_sock上

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
   when RULE_INIT {
    # Set your own UDP vs IP and port
    set static::UDP_PROXY_IP "10.*.*.*"
    set static::UDP_PROXY_PORT 10000
}

when CLIENT_ACCEPTED {
    set authenticated 0
    virtual vs_proxy_real_sock
    TCP::collect
}

when CLIENT_DATA {
    set cdata [TCP::payload]
    set clen [TCP::payload length]
    log local0. "Client payload length: ${clen}"
    if { ${authenticated} == 0 } {
        binary scan ${cdata} ccc version count method0
        if { ![info exists version] || ${version} != 5 || ![info exists count] || ${count} < 1 || ![info exists method0] || ${method0} != 0 } {
            log local0. "Unknown first packet; bypass processing"
            TCP::release
            return
        } else {
            incr authenticated
            binary scan ${cdata} H* hexcdata
            log local0. "Authentication packet detected: ${hexcdata}"
        }
    } else {
        set cursor 0
        binary scan ${cdata} cc version command
        incr cursor 2
        if { ![info exists version] || ${version} != 5 || ![info exists command] || ${command} != 3 } {
            log local0. "Command is not UdpAssociate <${command}>; bypass processing"
            TCP::release
            return
        } else {
            binary scan ${cdata} x${cursor}cc reserved atype
            incr cursor 2
            if { [info exists reserved] && [info exists atype] && ${atype} == 1 } {
                binary scan ${cdata} x${cursor}ccccS a1 a2 a3 a4 port
                incr cursor 6
                if { [info exists a1] && [info exists a2] && [info exists a3] && [info exists a4] && [info exists port] } {
                    set a1 [expr {${a1} & 0xff}]
                    set a2 [expr {${a2} & 0xff}]
                    set a3 [expr {${a3} & 0xff}]
                    set a4 [expr {${a4} & 0xff}]
                    set port [expr {${port} & 0xffff}]
                    log local0. "UDP client: ${a1}.${a2}.${a3}.${a4}:${port}"
                    TCP::payload replace 0 ${clen} ""
                    set t1 [getfield ${static::UDP_PROXY_IP} "." 1]
                    set t2 [getfield ${static::UDP_PROXY_IP} "." 2]
                    set t3 [getfield ${static::UDP_PROXY_IP} "." 3]
                    set t4 [getfield ${static::UDP_PROXY_IP} "." 4]
                    TCP::respond [binary format ccccccccS 5 0 0 1 ${t1} ${t2} ${t3} ${t4} ${static::UDP_PROXY_PORT}]
                    return
                }
            }
            TCP::payload replace 0 0 ${authprefix}
            TCP::release
            return
        }
    }
    TCP::release
    TCP::collect
}

when LB_SELECTED {
    log local0. "LB_SELECTED"
}

在UDP vs上关联:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
    when CLIENT_ACCEPTED {
    set cdata [UDP::payload]
    set clen [UDP::payload length]
    set cursor 0
    binary scan ${cdata} SccccccS reserved frag atype a1 a2 a3 a4 port
    incr cursor 10
    if { [info exists reserved] && [info exists frag] && [info exists atype] && [info exists a1] && [info exists a2] && [info exists a3] && [info exists a4] && [info exists port] } {
        if { ${atype} == 1 } {
            # Only handle IPv4 in this iRule
            # Normalize the scanned numbers
            set a1 [expr {${a1} & 0xff}]
            set a2 [expr {${a2} & 0xff}]
            set a3 [expr {${a3} & 0xff}]
            set a4 [expr {${a4} & 0xff}]
            set port [expr {${port} & 0xffff}]
            log local0. "UDP destination: ${a1}.${a2}.${a3}.${a4}:${port}"
            binary scan ${cdata} x${cursor}a* actual_data
            if { [info exists actual_data] } {
                binary scan ${cdata} a${cursor} cheader
                log local0. "Actual data size: [string length ${actual_data}]"
                UDP::payload replace 0 0 ${actual_data}
                UDP::payload replace [string length ${actual_data}] ${clen} ""             <<<<<<<<<<<< ${clen} should not the correct length.
                log local0. "UDP payload size after modification: [UDP::payload length]"       <<<<<<< Look at the log messages, always the same as before modification!
                #node "${a1}.${a2}.${a3}.${a4}:${port}"
                node ${a1}.${a2}.${a3}.${a4} ${port}
            } else {
                log local0. "No data is found; packet dropped"
                drop
            }
        }
    }
}

when LB_SELECTED {
    log local0. "LB_SELECTED"
}

when CLIENT_DATA {
    log local0. "CLIENT_DATA"
}

when SERVER_CONNECTED {
    log local0. "SERVER_CONNECTED"
}

when SERVER_DATA {
    log local0. "SERVER_DATA"
    if { [info exists cheader] } {
        UDP::payload replace 0 0 ${cheader}
        log local0. "Response size after modification: [UDP::payload length]"
    }
}

需要注意,上述两个vs(关联socks profile的tcp,udp)是两个完全独立的连接,根据socks协议规范,tcp和udp两个连接是伴生关系,因此注意tcp vs的idle timeout不要过早的删除连接导致udp跟着断开.

[title]BIND连接方法[/title]

不支持,以下测试服务器未返回消息

(echo -ne "\x05\x01\x00"; sleep 1; echo -ne "\x05\x02\x00\x01\xb8\x18\x62\x62\x00\x50";sleep 1;) | nc ip 1080

[title]socks服务代理验证[/title]

待更新
