F5 CC 租户配置隔离配置方法

2019年01月3日 22361点热度 1人点赞 0条评论

环境 : flannel vxlan,K8S 1.10, BIGIP V13

前提:将bigip作为node节点加入k8s中。 BIGIP上提前配置好vxlan tunnel和tunnel self ip (这两个资源都在/Common下)

步骤1: 在NS1下创建第一个cc,只监听这个ns内资源:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
[root@k8s-master f5-k8s]# cat bigip-ctlr-deployment.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: k8s-bigip-ctlr-deployment
  namespace: kube-system
spec:
  # DO NOT INCREASE REPLICA COUNT
  replicas: 1
  template:
    metadata:
      name: k8s-bigip-ctlr
      labels:
        app: k8s-bigip-ctlr
    spec:
      # Name of the Service Account bound to a Cluster Role with the required
      # permissions
      serviceAccountName: bigip-ctlr
      containers:
        - name: k8s-bigip-ctlr
          image: "myf5/k8s-bigip-ctlr:1.7.1"
          env:
            - name: BIGIP_USERNAME
              valueFrom:
                secretKeyRef:
                  # Replace with the name of the Secret containing your login
                  # credentials
                  name: bigip-login
                  key: username
            - name: BIGIP_PASSWORD
              valueFrom:
                secretKeyRef:
                  # Replace with the name of the Secret containing your login
                  # credentials
                  name: bigip-login
                  key: password
            - name: TZ
              value: Asia/Shanghai
          command: ["/app/bin/k8s-bigip-ctlr"]
          args: [
            # See the k8s-bigip-ctlr documentation for information about
            # all config options
            # https://clouddocs.f5.com/products/connectors/k8s-bigip-ctlr/latest
            "--bigip-username=$(BIGIP_USERNAME)",
            "--bigip-password=$(BIGIP_PASSWORD)",
            "--bigip-url=172.16.20.202",
            "--bigip-partition=k8s",
            "--namespace=default",
            "--pool-member-type=cluster",
            "--flannel-name=/Common/flannel_vxlan", <<注意这的partition信息要与tunnel所在partition一致
            ]
      imagePullSecrets:
        # Secret containing the BIG-IP system login credentials
        - name: bigip-login


创建完毕后,F5将在/Common下创建相关FDB条目

步骤2: 在相关ns下发布对应的configmap F5资源

步骤3:在另一个ns里部署一个新的cc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
[root@k8s-master f5-k8s]# cat  bigip-ctlr-deployment-cka-ns.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: k8s-bigip-ctlr-deploy-ns-cka
  namespace: kube-system
spec:
  # DO NOT INCREASE REPLICA COUNT
  replicas: 1
  template:
    metadata:
      name: k8s-bigip-ctlr-ns-cka
      labels:
        app: k8s-bigip-ctlr-ns-cka
    spec:
      # Name of the Service Account bound to a Cluster Role with the required
      # permissions
      serviceAccountName: bigip-ctlr
      containers:
        - name: k8s-bigip-ctlr-ns-cka
          image: "myf5/k8s-bigip-ctlr:1.7.1"
          env:
            - name: BIGIP_USERNAME
              valueFrom:
                secretKeyRef:
                  # Replace with the name of the Secret containing your login
                  # credentials
                  name: bigip-login
                  key: username
            - name: BIGIP_PASSWORD
              valueFrom:
                secretKeyRef:
                  # Replace with the name of the Secret containing your login
                  # credentials
                  name: bigip-login
                  key: password
            - name: TZ
              value: Asia/Shanghai
          command: ["/app/bin/k8s-bigip-ctlr"]
          args: [
            # See the k8s-bigip-ctlr documentation for information about
            # all config options
            # https://clouddocs.f5.com/products/connectors/k8s-bigip-ctlr/latest
            "--bigip-username=$(BIGIP_USERNAME)",
            "--bigip-password=$(BIGIP_PASSWORD)",
            "--bigip-url=172.16.20.202",
            "--bigip-partition=cka",
            "--namespace=cka",
            "--pool-member-type=cluster",
            "--flannel-name=/cka/flannel_vxlan", <<<注意这里的partition,写NS所希望对应的F5 partition。CC写入静态arp条目时候要用到此信息
            ]
      imagePullSecrets:
        # Secret containing the BIG-IP system login credentials
        - name: bigip-login


在新的ns里发布相关configmap F5资源即可

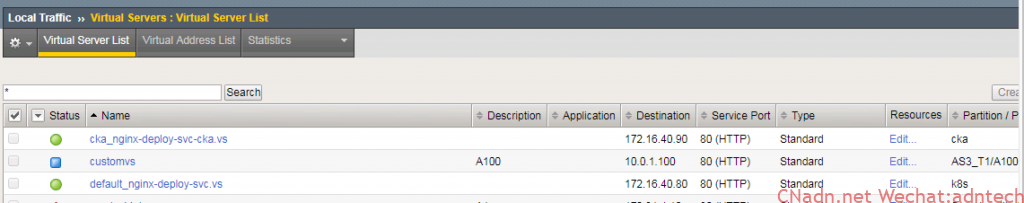

最后F5上结果如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
myf5@(v13-common)(cfg-sync Not All Devices Synced)(Active)(/cka)(tmos)# cd /Common
myf5@(v13-common)(cfg-sync Not All Devices Synced)(Active)(/Common)(tmos)# show net fdb

-------------------------------------------------------------------
Net::FDB
Tunnel         Mac Address        Member                    Dynamic
-------------------------------------------------------------------
flannel_vxlan  ba:f6:f6:1c:26:1e  endpoint:172.16.40.198%0  no
flannel_vxlan  de:dc:e2:5c:ea:50  endpoint:172.16.40.199%0  no
flannel_vxlan  00:50:56:b3:2e:29  endpoint:172.16.40.202%0  no
flannel_vxlan  00:50:56:b3:bc:0f  endpoint:172.16.40.203%0  no

myf5@(v13-common)(cfg-sync Not All Devices Synced)(Active)(/Common)(tmos)# show net arp

----------------------------------------------------------------------------------------------------
Net::Arp
Name                     Address        HWaddress          Vlan              Expire-in-sec  Status
----------------------------------------------------------------------------------------------------
/Common/k8s-10.244.0.78  10.244.0.78    de:dc:e2:5c:ea:50  -                 -              static
/Common/k8s-10.244.1.35  10.244.1.35    ba:f6:f6:1c:26:1e  -                 -              static
172.16.30.203            172.16.30.203  00:50:56:b3:03:ff  /Common/ext_vlan  222            resolved
172.16.40.198            172.16.40.198  00:50:56:b3:1b:9b  /Common/int_vlan  286            resolved
172.16.40.199            172.16.40.199  00:50:56:b3:09:f2  /Common/int_vlan  278            resolved

myf5@(v13-common)(cfg-sync Not All Devices Synced)(Active)(/Common)(tmos)# cd /cka
myf5@(v13-common)(cfg-sync Not All Devices Synced)(Active)(/cka)(tmos)# show net fdb
myf5@(v13-common)(cfg-sync Not All Devices Synced)(Active)(/cka)(tmos)# show net arp

-------------------------------------------------------------------------------------------------
Net::Arp
Name                  Address        HWaddress          Vlan              Expire-in-sec  Status
-------------------------------------------------------------------------------------------------
/cka/k8s-10.244.0.76  10.244.0.76    de:dc:e2:5c:ea:50  -                 -              static
/cka/k8s-10.244.1.32  10.244.1.32    ba:f6:f6:1c:26:1e  -                 -              static
172.16.30.203         172.16.30.203  00:50:56:b3:03:ff  /Common/ext_vlan  214            resolved
172.16.40.198         172.16.40.198  00:50:56:b3:1b:9b  /Common/int_vlan  278            resolved
172.16.40.199         172.16.40.199  00:50:56:b3:09:f2  /Common/int_vlan  271            resolved
