docker容器跨宿主机通信方法(2):路由方式

2017年06月24日 14714点热度 0人点赞 0条评论

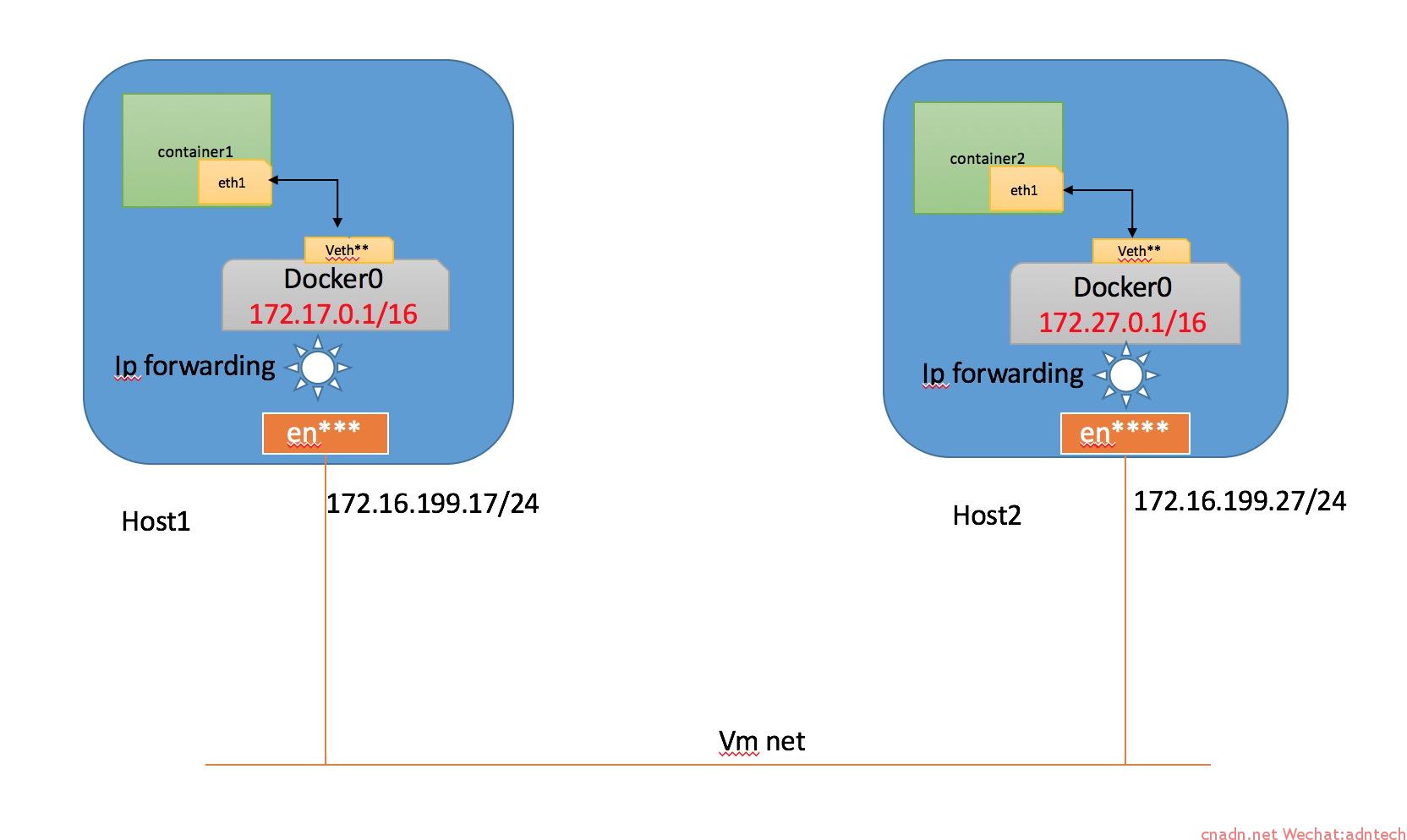

路由方式互联跨宿主机容器:

linux在容器docker0网路与host的网卡网咯之间是可以执行ip forwarding的,因此跨主机的容器网络可以通过路由的方式来实现彼此互通,如下结构:

只需要在host1 添加到达172.27.0.0/16网络的路由,在host2上添加172.17.0.0/16的路由即可。

需要注意的前提:

各个host上的容器docker0网络不能相同,也就是说各个host里的容器的ip地址不能存在网络重叠情况,而缺省情况下,docker在建立docker0的时候都默认使用172.17.0.0/16网络,因此有必要对docker这一默认行为进行修改,实验环境版本下的修改方法如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[root@docker2 system]# pwd
/usr/lib/systemd/system
[root@docker2 system]# vi docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
ExecStart=/usr/bin/dockerd --bip 172.27.0.1/16
ExecReload=/bin/kill -s HUP $MAINPID
# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
# Uncomment TasksMax if your systemd version supports it.
# Only systemd 226 and above support this version.
#TasksMax=infinity
TimeoutStartSec=0
# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes
# kill only the docker process, not all processes in the cgroup
KillMode=process
# restart the docker process if it exits prematurely
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target

修改缺省的 docker服务启动文件,在 execstart中增加 --bip参数来指定docker0网桥地址从而实现对应docker网络的修改。注意:修改此配置文件后,需要在ifconfig输出里没有docker0网桥或者docker0网桥的IP和你修改的配置文件里一致才可以正常启动服务。

修改完毕后,启动服务:

1
2
systemctl daemon-reload
systemctl start docker

检查docker0设置:

1
2
3
4
5
6
7
8
9
[root@docker2 system]# ifconfig
docker0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.27.0.1  netmask 255.255.0.0  broadcast 0.0.0.0
        inet6 fe80::42:24ff:fe2c:e4c7  prefixlen 64  scopeid 0x20<link>
        ether 02:42:24:2c:e4:c7  txqueuelen 0  (Ethernet)
        RX packets 551  bytes 45332 (44.2 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 27  bytes 1582 (1.5 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

host2增加路由;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[root@docker2 system]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.1     0.0.0.0         UG    100    0        0 eno16777736
172.16.199.0    0.0.0.0         255.255.255.0   U     100    0        0 eno50332184
172.27.0.0      0.0.0.0         255.255.0.0     U     0      0        0 docker0
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eno16777736
[root@docker2 system]# route add -net 172.17.0.0/16 gw 172.16.199.17
[root@docker2 system]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.1     0.0.0.0         UG    100    0        0 eno16777736
172.16.199.0    0.0.0.0         255.255.255.0   U     100    0        0 eno50332184
172.17.0.0      172.16.199.17   255.255.0.0     UG    0      0        0 eno50332184
172.27.0.0      0.0.0.0         255.255.0.0     U     0      0        0 docker0
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eno16777736

host1增加路由:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@docker1 ~]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.1     0.0.0.0         UG    100    0        0 eno16777736
172.16.199.0    0.0.0.0         255.255.255.0   U     100    0        0 eno50332184
172.17.0.0      0.0.0.0         255.255.0.0     U     0      0        0 docker0
172.19.0.0      0.0.0.0         255.255.0.0     U     0      0        0 br-2aeddaf04b59
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eno16777736
[root@docker1 ~]# route add -net 172.27.0.0/16 gw 172.16.199.27
[root@docker1 ~]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.1     0.0.0.0         UG    100    0        0 eno16777736
172.16.199.0    0.0.0.0         255.255.255.0   U     100    0        0 eno50332184
172.17.0.0      0.0.0.0         255.255.0.0     U     0      0        0 docker0
172.19.0.0      0.0.0.0         255.255.0.0     U     0      0        0 br-2aeddaf04b59
172.27.0.0      172.16.199.27   255.255.0.0     UG    0      0        0 eno50332184
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eno16777736



测试:

host1上的容器里ping host2上的容器IP:

1
2
3
4
5
6
[root@docker1 ~]# docker exec busybox-11 ping 172.27.0.2
Error response from daemon: No such container: busybox-11
[root@docker1 ~]# docker exec busybox-1 ping 172.27.0.2
PING 172.27.0.2 (172.27.0.2): 56 data bytes
64 bytes from 172.27.0.2: seq=0 ttl=62 time=0.721 ms
64 bytes from 172.27.0.2: seq=1 ttl=62 time=0.948 ms

可以正常ping 通。测试成功。

手工配置的问题及Quagga自动化方案

但是在一个生产环境中,会有很多主机,手工维护这样一个静态路由的添加修改必然是一件很恐怖的事情,因此有了这样一个工具可以帮助自动完成这些工作:  http://www.quagga.net

需要在系统里运行这样一个软件路由器系统来实现彼此学习各个host里的docker0网络。为了简单化,可以将该软件容器化,然后以特权模式(--privileged)启动该容器,便可以自动彼此学习路由。网上灵雀云提供的那个容器image地址已经失效,可以手工从这里下载该镜像 https://pan.baidu.com/s/1sj26X8T

下载完毕后,将tar文件上传到所有host机器上,并执行命令:

1
2
3
[root@docker1 tmp]# ls
abrt  route.tar
[root@docker1 tmp]# docker load -i route.tar

tar文件将被load为image

1
2
3
4
5
6
[root@docker1 tmp]# docker image ls
REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE
nginx                           latest              46102226f2fd        8 weeks ago         109MB
busybox                         latest              00f017a8c2a6        3 months ago        1.11MB
hello-world                     latest              48b5124b2768        5 months ago        1.84kB
index.alauda.cn/georce/router   latest              cc9f1eb39091        2 years ago         139MB

在启动该容器前,检查一下当前路由表条目:

1
2
3
4
5
6
7
8
[root@docker1 tmp]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.1     0.0.0.0         UG    100    0        0 eno16777736
172.16.199.0    0.0.0.0         255.255.255.0   U     100    0        0 eno50332184
172.17.0.0      0.0.0.0         255.255.0.0     U     0      0        0 docker0
172.19.0.0      0.0.0.0         255.255.0.0     U     0      0        0 br-2aeddaf04b59
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eno16777736

所有host上关闭系统防火墙 systemctl stop firewalld.service
所有host上启动quagga容器:

1
docker run -itd --name router --privileged --net=host index.alauda.cn/georce/router

稍等片刻,再次检查路由表,发现系统路由表已增加一条到达172.27.0.0/16的路由

1
2
3
4
5
6
7
8
9
[root@docker1 tmp]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.0.1     0.0.0.0         UG    100    0        0 eno16777736
172.16.199.0    0.0.0.0         255.255.255.0   U     100    0        0 eno50332184
172.17.0.0      0.0.0.0         255.255.0.0     U     0      0        0 docker0
172.19.0.0      0.0.0.0         255.255.0.0     U     0      0        0 br-2aeddaf04b59
172.27.0.0      192.168.0.183   255.255.0.0     UG    20     0        0 eno16777736
192.168.0.0     0.0.0.0         255.255.255.0   U     100    0        0 eno16777736

再次执行ping,可以成功ping通:

1
2
3
4
[root@docker1 tmp]# docker exec busybox-1 ping 172.27.0.2
PING 172.27.0.2 (172.27.0.2): 56 data bytes
64 bytes from 172.27.0.2: seq=0 ttl=62 time=0.678 ms
64 bytes from 172.27.0.2: seq=1 ttl=62 time=0.907 ms

如果此时连接到quagga, telnet localhost 2601: (密码zebra)可以看到当前路由表,docker容器启用了ospf和rip两个动态路由协议

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Router# show ip route
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
       I - ISIS, B - BGP, > - selected route, * - FIB route

K>* 0.0.0.0/0 via 192.168.0.1, eno16777736
C>* 127.0.0.0/8 is directly connected, lo
O   172.16.199.0/24 [110/10] is directly connected, eno50332184, 00:25:21
C>* 172.16.199.0/24 is directly connected, eno50332184
O   172.17.0.0/16 [110/10] is directly connected, docker0, 00:25:21
K * 172.17.0.0/16 is directly connected, docker0
C>* 172.17.0.0/16 is directly connected, docker0
O   172.19.0.0/16 [110/10] is directly connected, br-2aeddaf04b59, 00:25:21
C>* 172.19.0.0/16 is directly connected, br-2aeddaf04b59
O>* 172.27.0.0/16 [110/20] via 192.168.0.183, eno16777736, 00:13:35
  *                        via 172.16.199.27, eno50332184, 00:13:35
R   172.27.0.0/16 [120/2] via 192.168.0.183, eno16777736, 00:13:38
O   192.168.0.0/24 [110/10] is directly connected, eno16777736, 00:25:21
C>* 192.168.0.0/24 is directly connected, eno16777736
